Scott Hanselman

Installing Helvetica Neue Fonts with Google Chrome on Windows considered harmful

April 17, '13 Comments [36] Posted in Bugs
Sponsored By

A few days ago, I visited the Xamarin.com website and noticed this. The word "Pricing" looks like "Prioing."

The C looks like an O in Chrome

It's not an illusion. It looks wrong in Google Chrome. See this zoomed-in shot.

The C looks like an O in Chrome

Here's the same menu in IE. Note the subtle"bites" that have been taken out of the g and s, but the c is OK. The hinting is OK, but the font is somehow "wrong."

It looks OK, if a little choppy in IE

I emailed support@xamarin, and mentally blamed Google Chrome as it's well know they've been having trouble with their Web Font rendering of late. In fact, Jin Yang (@jzy) had to abandon Montserrat, our Web Font of choice, for a more conservative one whilst doing the Hanselman.com redesign due to Google Chrome's poor font rendering on Windows. (It's lovely on Mac.)

I also happened to be at the Xamarin Evolve conference this week, so I mentioned it to the team down there, thinking they could pick another font.

Fast forward, and I'm on the plane, checking my email with Gmail Offline (the HTML5 offline version of Gmail) and noticed this.

These fonts look like crap too!

Helvetica Neue has messed up my Gmail Offline

What's going on here? What's changed? Doesn't it seem like "What's changed?" is the question we engineer-types ask the most?

Well, what's changed is that I gave a talk at Xamarin Evolve this week, and in preparation, installed Helvetica Neue. It's a lovely font and I think it worked nicely for my talk and looked great in PowerPoint.

Helvetica Neue is a nice font for presentations

However, Helvetica is super common font that is mentioned in Stylesheets - often explicitly when CSS is designed on a Mac - and Arial on Windows usually steps in as the replacement on Windows.

The Helvetica Neue font that I installed for my presentation is very poorly hinted (if at all) at small sizes like the one's being used. It's just not a Web Font, and while it's great for the giant sizes I needed for my talk, it's lousy for the web.

Both  IE and Chrome were picking up that my system had a Helvetica available on the system and used it instead. The Stylesheet said "hey, gimme Helvetica" and the browser said "Cool, here's one."

While it's obvious it would have major effects in retrospect, I had never realized that a machine-wide "common" font installation like this could mess up font rendering in my browser. I think the best solution (even though I'm deleting Helvetica Neue) would be to use an explicit Web Font in your stylesheets when possible rather than relying on a system font like Helvetica, even though they are the ultimate fallback. Any designers want to  weigh-in the comments?

Here's Chrome now on Windows with Helvetica Neue removed:

Chrome on Windows looks nice

And IE

IE on Windows looks nice

I hope this post helps someone who might bump into this font issue. My sincerely apologies to the lovely Xamarin employees who took my "bug" seriously! Thanks to Damian Guard for his Font insight!

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

How to disable the On-Screen Touch Keyboard in Windows 8

April 17, '13 Comments [30] Posted in Win8
Sponsored By

It's lovely, isn't it. It's the Windows 8 on-screen keyboard, except I don't need or want to see it. I have a Lenovo X1 Carbon Touch and it already has a keyboard. I will never ever want to use the Windows 8 touch keyboard. Unfortunately there is no checkbox or "just turn it off" way to disable the keyboard with a supported option.

However, there is a way to effectively disable the keyboard by stopping the service that controls it.

  • Press the Windows key + W
  • Type "services," and press Enter
  • Scroll down to "Touch screen keyboard and handwriting panel"
  • You can either right click and "Stop" or you can double-click and change it from "Automatic" startup to "Manual."

This will of course, disable both the touch keyboard and handwriting service, so you'll lose handwriting recognition. This was totally worth it to me and has made my touch screen laptop experience much better, especially when I'm using the Full Screen Browser. I hope this helps!

Note that if you have a touch only device, or a detachable keyboard, you could get yourself into a tough spot without an on-screen keyboard, so just have your mouse ready and a plan to turn this service back on if you get in trouble. ;)

If you're having any other problems with Windows 8, I encourage you to check out my simple "Windows 8 Missing Instruction Manual" blog post and YouTube video. It's helped a lot of people and could help you!

Thanks!

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Hanselman's Newsletter of Wonderful Things: April 3rd, 2013

April 12, '13 Comments [10] Posted in Newsletter
Sponsored By

I have a "whenever I get around to doing it" Newsletter of Wonderful Things. Why a newsletter? I dunno. It seems more personal somehow. Fight me.

You can view all the previous newsletters here. You can sign up here Newsletter of Wonderful Things or just wait and get them later on the blog, which hopefully you have subscribed to. Email folks get it first!

Here's the MOST RECENT newsletter, delay-posted as I do.


Hi Interfriends,

Thanks again for signing up for this experiment. Here's some interesting things I've come upon this week. If you forwarded this (or if it was forwarded to you) a reminder: You can sign up at http://hanselman.com/newsletter and the archive of all previous Newsletters is here.

Scott Hanselman

(BTW, since you *love* email you can subscribe to my blog via email here: http://feeds.hanselman.com/ScottHanselman DO IT!)

P.P.S. You know you can forward this to your friends, right?

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Windows task manager shows wrong CPU Speed when using Hyper-V

April 11, '13 Comments [21] Posted in Bugs | Tools
Sponsored By

My buddy Damian and I both recently bought the Lenovo X1 Carbon Touch. It's got Intel SpeedStep technology so it changes the CPU speed dynamically based on load. These two laptops of ours are identical. However, here's Damian's Task Manager when mostly idle.His speed is 0.60 GHz

Here's mine.

His speed is 2.49 GHz

What the heck is going on? His CPU is reporting 0.60 GHz of a potential speed of 2GHz, indicating that the chip has chilled out. Mine is reporting "full speed ahead!" at a speed that it doesn't even support, 2.49GHz!

We went around and around on this for a while until we realized that I had turned on Hyper-V Virtualization for Windows Phone Development and my Ubuntu VM. He hadn't.

We installed CPU-Z, a low level and very smart CPU utility and got the truth. In fact, both machines are stepping down, but my Kernel is running within the Hypervisor and it's CPU speed is being reported incorrectly to Task Manager. Task Manager is showing the MAX speed, and not the real (Hyper-V virtualized) speed.

cpuz

lenovocpu

NOTE: CPU-Z is lovely but the Download.com wrapper that they put around it is evil spyware and you need to really pay attention when you install or you'll end up installing a bunch of toolbars. Be warned.

I hope this helps someone! It wasted 30 minutes of my life.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Streaming Diagnostics Trace Logging from the Azure Command Line (plus Glimpse!)

April 5, '13 Comments [28] Posted in Azure | Open Source
Sponsored By
Streaming logs from Azure. That's insane!

I’ve long said when in doubt, turn on tracing. Sometimes "got here"-debugging is a great tool. I tend to use System.Diagnostics.Trace a lot in my code. Then I'll use ELMAH or Glimpse to get more insight.

Lately though, I've been doing a lot of Azure sites and have been wanting to get at trace data, sometimes at the Azure command line.

I'll do this to deploy (or deploy from Visual Studio):

azure site create mysite --git
git add .
git commit -m "initial deploy"
git push azure master

Then later if I want to restart, start, stop, etc I can certainly

azure site restart mysite

But I was talking to one of the devs a while back and said I really wanted

azure site log tail mysite

And they made it! Check this out. You can try it right now.

Add Tracing to your App

First, make an app that has some tracing. Here's mine. Any ASP.NET app is fine, MVC or Web Forms or Web Pages, doesn't matter. Note the Traces.

public class HomeController : Controller
{
public ActionResult Index()
{
ViewBag.Message = "Modify this template to jump-start your ASP.NET MVC application.";
System.Diagnostics.Trace.TraceError("ZOMG THIS IS BAD");
return View();
}

public ActionResult About()
{
ViewBag.Message = "Your app description page.";
System.Diagnostics.Trace.TraceInformation("Just chillin.");
return View();
}
}

Then, upload it to Azure. I did a Publish directly from VS in this case, just right click, Publish and Import the Publish Profile that you download from the portal. You can publish however you like.

Download Publish Profile

Local Tracing with Trace.axd

You likely know that you can enable tracing locally with trace.axd in your ASP.NET app (and MVC apps) by adding trace listeners to your web.config:

<system.diagnostics>
<trace>
<listeners>
<add name="WebPageTraceListener"
type="System.Web.WebPageTraceListener, System.Web, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a"/>
</listeners>
</trace>
</system.diagnostics>

So if I visit trace.axd locally, I see my traces:

Tracing shown via trace.axd

If you really wanted this remotely you could say so also:

<trace enabled="true" writeToDiagnosticsTrace="true" localOnly="false" mostRecent="true" pageOutput="false" />

Streaming Logs from the Azure Command Line

When my app is in Azure, I can get to the tracing info as well. From the management portal, I can see where the log files are, right?

The locations of my logging files

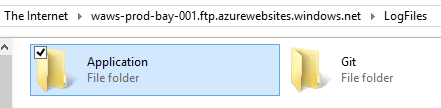

And I can FTP in and see them, as I always could. Notice I am using Explorer to FTP in. I can just copy paste the URL into Explorer itself, then enter my deployment credentials.

You can FTP in and get the logs with Explorer. Does anyone do that anymore?

I can also do this with my favorite FTP app, or the browser. Inside the Application Folder is where the tracing files are.

From the command line, I can do this, and the logs are streamed to me.

C:\>azure site log tail mysite
info: Executing command site log tail
2013-04-05T19:45:10 Welcome, you are now connected to log-streaming service.
2013-04-05T19:45:13 PID[2084] Error ZOMG THIS IS BAD

This works with both .NET apps and nodejs apps, by the way. All logs written to the  LogFiles folder can be streamed in real time. The Application trace logs collected under the LogFiles/Application folder are streamed out by default. you can also get at IIS logs written to the LogFiles/Http folder. Any files created in a custom folder e.g. LogFiles/<Custom> will have their contents streamed as well.

I can also filter for specific characters with --filter, so:

C:\>azure site log tail loggingtest --filter ZOMG
info: Executing command site log tail
2013-04-05T19:45:10 Welcome, you are now connected to log-streaming service.
2013-04-05T19:45:13 PID[2084] Error ZOMG THIS IS BAD

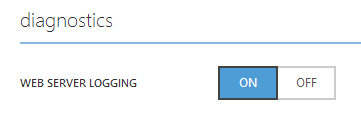

I can also turn on Web Server Logging:

Turning on Web Server Logging

If you are using node.js, you'll need to turn on logging in the iisnode.yml. Make sure logging is turned on in your iisnode.yml:
# For security reasons, logging, dev errors, and debugging
# should be disabled in production deployments:
loggingEnabled: false
debuggingEnabled: false
devErrorsEnabled: false
node_env: production

And stream the raw IIS logs as well!

C:\>azure site log tail loggingtest -p http
info: Executing command site log tail
2013-04-05T20:03:59 Welcome, you are now connected to log-streaming service.
2013-04-05 20:04:15 LOGGINGTEST GET / X-ARR-LOG-ID=5a267b3f-6c0e-4a1d-9cb6-d872e
31a2f2e 80 - 166.147.88.43 Mozilla/5.0+(Windows+NT+6.2;+WOW64)+AppleWebKit/537.3
1+(KHTML,+like+Gecko)+Chrome/26.0.1410.43+Safari/537.31 ARRAffinity=edd1561bc28b
b0ea9133780b878994b30ed4697656295364ebc8aadc14f54d2;+WAWebSiteSID=57051e6cd07a4

I can also just download the logs directly to disk from the command line.

C:\>azure site log download loggingtest
info: Executing command site log download
+ Downloading diagnostic log
info: Writing to diagnostics.zip
info: site log download command OK

This feature is in Azure today, and in a few days the UI will appear in the management portal as well. It will look like this. The best part of this UI is that it will allow you to turn it on and off plus change the logging level without recycling the app domain.

Changing the web.config causes an app restart. Since you often want to change your log levels without a restart, these Azure-specific trace settings are stored in /site/diagnostics/settings.json within your instance. You can FTP in and see if you like.

Azure will use your existing trace settings from web.config unless these overriding settings exist.

The new Application Diagnostics logging switch

Remember, you can view these streamed logs on the client using Windows Azure PowerShell (Windows) or Windows Azure Cross Platform Command Line Interface (Windows, Mac and Linux).

Things to be aware of

Turning logging on will turn it on only for 12 hours. You don't usually want logs on forever. Conveniently, if you connect a streaming client, then logging gets auto enabled.

The defaults are to split log files at 128k and keep your app logs under 1MB and the whole logs folder under 30MB. If you need more, you can override some advanced settings directly in the portal.

Here I'm setting the log file splits to 10k and the max Application log to 5MB.

Overriding configuration settings in the Azure Portal

Here's some advanced settings you can override:

  • DIAGNOSTICS_LASTRESORTFILE - "logging-errors.txt"
    • The name (or relative path to the LogDirectory) of the file where internal errors are logged, for troubleshooting the listener.
  • DIAGNOSTICS_LOGGINGSETTINGSFILE - "..\diagnostics\settings.json"
    • The settings file, relative to the web app root.
  • DIAGNOSTICS_TEXTTRACELOGDIRECTORY - "..\..\LogFiles\Application"
    • The log folder, relative to the web app root.
  • DIAGNOSTICS_TEXTTRACEMAXLOGFILESIZEBYTES - 128 * 1024 (bytes)
    • Default: 128 kb log file
  • DIAGNOSTICS_TEXTTRACEMAXLOGFOLDERSIZEBYTES - 1024 * 1024 (bytes)
    • Default: 1 MB Application Folder (30 MB entire Logs Folder)

In the future, I expect we'll see easy ways to put logs in Azure table storage as well as command line querying by time, pid, etc. It would also be nice to be able to get to these logs from inside of Visual Studio.

Routing More Data to Tracing with Glimpse

If you haven't used Glimpse, you're in for a treat. I'll post again about Glimpse next week. Glimpse is a client side debugging framework for your web app.

I used NuGet to bring in "Glimpse.Mvc4" (Be sure to get the right one for you, like Glimpse.Mvc3, or Glimpse.EF5, etc. Check out http://getglimpse.com for more details).

Glimpse doesn't do anything until you turn it on. Locally I hit http://localhost:xxxx/Glimpse.axd and turn it on. Now, I visit the Trace tab and the Trace from earlier is there.

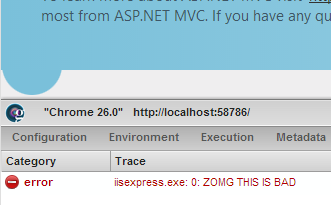

There's my tracing in the Glimpse Trace tab

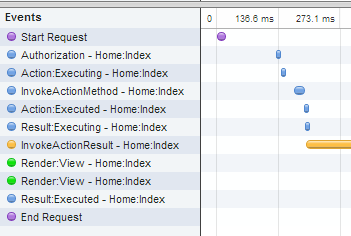

But if I go to the Timeline Tab, I get way more information, including all the ASP.NET events that are interesting to me. These "bracketing" events about befores and afters could be super useful if they were routed to System.Diagnostics.Trace.

Holy crap that Glimpse Timeline is full of good debugging info

How do I get this timeline view information routed to Tracing? Easy. I'll watch the Glimpse Timeline and route!

using Glimpse.Core.Extensibility;
using Glimpse.Core.Message;

public class TimelineTracer : IInspector
{
public void Setup(IInspectorContext context) {
context.MessageBroker.Subscribe<ITimelineMessage>(TraceMessage);
}

private void TraceMessage(ITimelineMessage message) {
var output = string.Format(
"{0} - {1} ms from beginning of request. Took {2} ms to execute.",
message.EventName,
message.Offset.Milliseconds,
message.Duration.Milliseconds);

System.Diagnostics.Trace.TraceInformation(output, message.EventCategory.Name);
}
}

Now I get lots of great Glimpse-supplied timing info in my Trace log as well that I can stream from the command line.

C:\>azure site log tail loggingtest
info: Executing command site log tail
2013-04-05T20:22:51 Welcome, you are now connected to log-streaming service.
2013-04-05T20:23:32 PID[1992] Information Start Request - 0 ms from beginning of request. Took 0 ms to execute.
2013-04-05T20:23:32 PID[1992] Information Authorization - Home:Index - 224 ms from beginning of request. Took 0 ms to execute.
2013-04-05T20:23:32 PID[1992] Information Action:Executing - Home:Index - 239 ms from beginning of request. Took 0 ms to execute.
2013-04-05T20:23:32 PID[1992] Error ZOMG THIS IS BAD
2013-04-05T20:23:32 PID[1992] Information InvokeActionMethod - Home:Index - 289 ms from beginning of request. Took 29 ms to execute.
2013-04-05T20:23:32 PID[1992] Information Action:Executed - Home:Index - 320 ms from beginning of request. Took 0 ms to execute.

I'm pretty stoked that it's was so easy to get subsystems like ASP.NET, Glimpse and now Web Sites on Azure to work together and share information.

I'm not sure which way I'll finally end up using them, but I'm definitely planning on instrumenting my code and calling System.Diagnostics.Trace more often since I can so easily route the results.

Finally, it's worth mentioning in case you didn't know, that all the Azure SDK is open source and is calling web services on the backend that you can call yourself. If you dig this log streaming feature, did you know you could have watched it get checked in from a Pull Request 3 months ago? Madness. It's a kinder, gentler Death Star over here at Microsoft.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Disclaimer: The opinions expressed herein are my own personal opinions and do not represent my employer's view in any way.
