Using Redis as a Service in Azure to speed up ASP.NET applications

November 6, '15 Comments [18] Posted in ASP.NET MVC | Azure
Sponsored By

Microsoft Azure has a Redis Cache as a Service. There's two tiers. Basic is a single cache node, and Standard is as a complete replicated Cache (two nodes, with automatic failover). Microsoft manages automatic replication between the two nodes, and offers a high-availability SLA. The Premium tier can use up to a half-terabyte of RAM and tens of thousands of client connections and be clustered and scaled out to even bigger units. Sure, I could manage your own Redis in my own VM if I wanted to, but this is SAAS (Software as a Service) that I don't have to think about - I just use it and the rest is handled.

I blogged about Redis on Azure last year but wanted to try it in a new scenario now, using it as a cache for ASP.NET web apps. There's also an interesting open source Redis Desktop Manager I wanted to try out. Another great GUI for Redis is Redsmin.

For small apps and sites I can make a Basic Redis Cache and get 250 megs. I made a Redis instance in Azure. It takes a minute or two to create. It's SSL by default. I can talk to it programmatically with something like StackExchange.Redis or ServiceStack.Redis or any of a LOT of other great client libraries.

However, there's now great support for caching and Redis in ASP.NET. There's a library called Microsoft.Web.RedisSessionStateProvider that I can get from NuGet:

Install-Package Microsoft.Web.RedisSessionStateProvider

It uses the StackExchange library under the covers, but it enables ASP.NET to use the Session object and store the results in Redis, rather than in memory on the web server. Add this to your web.config:

<sessionState mode="Custom" customProvider="FooFoo">
<providers>
<add name="MySessionStateStore"
type="Microsoft.Web.Redis.RedisSessionStateProvider"
host="hanselcache.redis.cache.windows.net"
accessKey="THEKEY"
ssl="true"
port="1234" />
</providers>
</sessionState>

Here's a string from ASP.NET Session stored in Redis as viewed in the Redis Desktop Manager. It's nice to use the provider as you don't need to change ANY code.

ASP.NET Session stored in a Redis Cache

You can turn off SSL and connect to Azure Redis Cache over the open internet but you really should use SSL. There's instructions for using Redis Desktop Manager with SSL and Azure Redis. Note the part where you need a .pem file which is the Azure Redis Cache SSL public key. You can get that SSL key here as of this writing.

Not only can you use Redis for Session State, but you can also use it for a lightning fast Output Cache. That means caching full HTTP responses. Setting it up in ASP.NET 4.x is very similar to the Session State Provider:

Install-Package Microsoft.Web.RedisOutputCacheProvider

Now when you use [OutputCache] attributes in MVC Controllers or OutputCache directives in Web Forms like <%@ OutputCache Duration="60" VaryByParam="*" %> the responses will be handled by Redis. With a little thought about how your query strings and URLs work, you can quickly take an app like a Product Catalog, for example, and make it 4x or 10x faster with caching. It's LOW effort and HIGH upside. I am consistently surprised even in 2015 how often I see folks going to the database on EVERY HTTP request when the app's data freshness needs just doesn't require the perf hit.

You can work with Redis directly in code, of course. There's docs for .NET, Node.js, Java and Python on Azure. It's a pretty amazing project and having it be fully managed as a service is nice. From the Azure Redis site:

Perhaps you're interested in Redis but you don't want to run it on Azure, or perhaps even on Linux. You can run Redis via MSOpenTech's Redis on Windows fork. You can install it from NuGet, Chocolatey or download it directly from the project github repository. If you do get Redis for Windows (super easy with Chocolatey), you can use the redis-cli.exe at the command line to talk to the Azure Redis Cache as well (of course!).

It's easy to run a local Redis server with redis-server.exe, test it out in development, then change your app's Redis connection string when you deploy to Azure. Check it out. Within 30 min you may be able to configure your app to use a cache (Redis or otherwise) and see some really significant speed-up.


Sponsor: Big thanks to my friends at Octopus Deploy for sponsoring the feed this week. Build servers are great at compiling code and running tests, but not so great at deployment. When you find yourself knee-deep in custom scripts trying to make your build server do something it wasn't meant to, give Octopus Deploy a try.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Using the Surface Pro 4 Type Cover with Fingerprint Reader on a Surface Pro 3

November 2, '15 Comments [21] Posted in Reviews
Sponsored By

Using the Surface Pro 4 Type Cover with Fingerprint Reader on a Surface Pro 3Last year in August I went and bought a Surface Pro 3 with my own money (it's not machine that work paid for) and I've been very happy with it. Now the Surface Pro 4 came out, and well, it's silly to upgrade for me when it's been just a year.

But. That Keyboard. The Surface Pro 4 has an all new Keyboard and Touch Pad.

The Surface Pro 3 keyboard is good, to be clear, but the touchpad sucks. After I used it for a few months I called it out as sucking. It's usable, but it's not fun to use.

Turns out that you can get a Surface Pro 4 Type Cover keyboard and it works and fits perfectly on a Surface Pro 3. You can upgrade your Surface Pro 3 (and pretend it's a 4, which is what I'm doing) by just adding the new Keyboard.

Fingerprint Reader

There's lots of new color Type Covers but the really interesting one is the Type Cover with Fingerprint Reader. Sadly, only available in Black, but it has an integrated Fingerprint Reader that lets you use the new "Windows Hello" login feature of Windows 10. Windows Hello means "using biometrics like fingerprints and faces and eye scanning to login to your computer."

It works and it works great. There was an Oct 26th "Firmware Update" in Windows Update that gives you the drivers you'll need. A Firmware Update for a Surface is essentially a "driver pack." Run Windows Update and attach the keyboard and you're set.

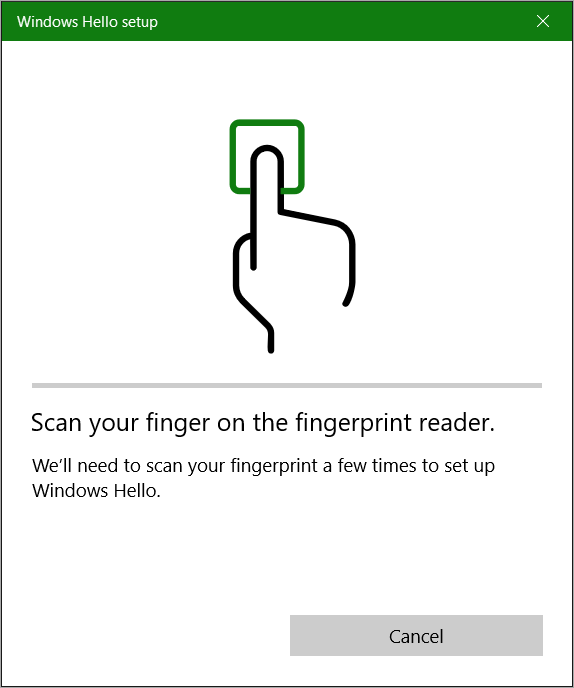

Windows Hello for Fingerprints

You enroll as many fingers as you want in Sign-In Options and that's it. Now you log in with your fingerprint. Lovely.

All new keyboard and touchpad

The picture before shows my original Surface Pro 3 Type Cover next to my new Surface Pro 4 Type Cover with Fingerprint Reader. First, the keyboard was already good on the Surface Pro 3, but it's just better on the 4. There are actual spaces between the keys, and you can see from the pic how the keys go even closer to the edge/bezel of the cover's surface. The keys are also slightly rearranged for the better. FN has been moved to the left, which makes sense, and a "context key" (which is effectively Shift-F10).

Another nice touch is that the FN key now has a light. On SP3 you had no way to see if it was locked, and you had to FN-CapsLock to force it on, and would have no visual indicator.

Finally, the silly Share and Settings secondary functions for Function F7 and F8 are gone and there's now an actual PrtScn button. It's the little things.


Now, to the touchpad. IT IS SO MUCH BETTER. It's actually usable. It's way larger (they say 40%) and it feels nicer. Before I always took another mouse with me because the SP3 touchpad was crippling. No longer. It's large enough for multi-finger gestures, including 3 and 4-finger taps. I'm still holding out for a "4 finger swipe" for Virtual Desktop switching, though.

One other subtlety that is worth pointing out...the fold. With the Surface Pro 3 Type Cover keyboard, when you fold it up to keep the Type Cover off the table, the fold makes it hard to press the "Start Button" on the screen because the keyboard butted right up against the screen. The Pro 4 Type Cover folds tighter and lower against the bottom bezel such that pressing icons in the taskbar and the Start button isn't a problem anymore. Subtle, but again, it's the little things.

I totally recommend this keyboard. It's given my Surface Pro 3 new life. It's the keyboard it should have always had.

* My links are Amazon Affiliate Links! Use them as they help support my blog and buy me tacos.


Sponsor: Big thanks to my friends at Octopus Deploy for sponsoring the feed this week. Build servers are great at compiling code and running tests, but not so great at deployment. When you find yourself knee-deep in custom scripts trying to make your build server do something it wasn't meant to, give Octopus Deploy a try.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

How to simulate a low bandwidth connection for testing web sites and applications

October 28, '15 Comments [26] Posted in Open Source
Sponsored By

Facebook just announced an internal initiative called "2G Tuesdays" and I think it's brilliant. It's a clear and concrete way to remind folks with fast internet (who likely have always had fast internet) that not everyone has unlimited bandwidth or a fast and reliable pipe. Did you know Facebook even has a tiny app called "Facebook Lite" that is just 1Mb and has good support for slower developing networks?

You should always test your websites and applications on a low bandwidth connection, but few people take the time. Many people don't know how to simulate simulate low bandwidth or think it's hard to set up.

Simulating low bandwidth with Google Chrome

If you're using Google Chrome, you can go to the Network Tab in F12 Tools and select a bandwidth level to simulate:

Selecting lower bandwidth in Google Chrome F12 Tools

Even better, you can also add Custom Profile to specify not only throughput but custom latency:

Custom Profiles for Google Chrome that control throughput and latency

Once you've set this up, you can also click "disable cache" and simulate a complete cold start for your site on a slow connection. 20 seconds is a long time to wait.

Google Chrome timeline showing my site on a 2G connection

Simulating a slow connection with a Proxy Server like Fiddler

If you aren't using Chrome or you want to simulate a slow connection for your apps or other browsers, you can slow it down from a Proxy Server like Fiddler or Charles.

Fiddler has a "simulate modem" option under Rules | Performance, and you can change the values from Rules | Customize Rules:


You can put in delays in milliseconds per KB in the script under m_SimulateModem:

if (m_SimulateModem) {
// Delay sends by 300ms per KB uploaded.
oSession["request-trickle-delay"] = "300";
// Delay receives by 150ms per KB downloaded.
oSession["response-trickle-delay"] = "150";
}

There's a number of proxy servers you can get to slow down traffic across your system. If you have Java, you can also try out one called "Sloppy." What's your favorite tool for slowing traffic down?

Conclusion

There is SO MUCH you can do to make the experience of loading your site better, not just for low-bandwidth folks, but for everyone. Squish your images! Don't use PNGs when a JPEG would do. Minify! Use CDNs!


However, step 0 is actually using your website on a slow connection. Go do that now.

Related Links


Sponsor: Big thanks to Infragistics for sponsoring the feed this week. Quickly & effortlessly create advanced, stylish, & high performing UIs for ASP.NET MVC with Ignite UI. Leverage the full power of Infragistics’ JavaScript-based jQuery/HTML5 control suite today.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

NuGet Package of the Week: Microphone registers and discovers Web APIs and REST services with Consul

October 27, '15 Comments [9] Posted in ASP.NET Web API | NuGetPOW | Open Source
Sponsored By

I'm sitting on a plane on the way back from a lovely time in Europe. I attended and spoke at some great conferences and met some cool people - some of which you'll hear on the podcast soon. Anyway, one of the things that I heard mentioned by attendees more than once was the issue of (micro) service discovery for RESTful APIs. Now if you lived through the WS*.* years you'll perhaps feel a lot of this is familiar or repeated territory, but the new stuff definitely fits together more effortlessly than in the past.

Consul is a system that does service discovery, configuration management, and health checking for your services. You can write Web APIs in lots of things, Rails, Python, and ASP.NET with WebAPI or NancyFX.

Microphone is a library by Roger Johansson that plugs into both WebAPI and Nancy and very simply and easily registers your services with Consul. It's recently been expanded to support CoreOs-ETCD as well, so it's really a general purpose framework.

I made a little .NET 4.6 console app that self hosts a WebAPI like this.

namespace ConsulSelfHostedWebAPIService
{
class Program
{
static void Main(string[] args)
{
Cluster.Bootstrap(new WebApiProvider(), new ConsulProvider(), "HanselWebApiService", "v1");
Console.ReadLine();
}
}

public class DefaultController : ApiController
{
public string Get()
{
return "Hey it's my personal WebApi Service";
}
}
}

Now my Web API is registered with Consul, and now Consul itself is a RESTful Web API where I can hit http://localhost:8500/v1/agent/services and get a list of registered services. It's the Discovery Service.

Consul reporting my WebAPI

Then later in a client or perhaps another Web API, I can ask for it by name and I'll get back the address and port that it's on, then call it.

var instance = await Cluster.FindServiceInstanceAsync("Heycool");

return String.Format("Look there's a service at {0}:{1}", instance.Address, instance.Port);

Here's an active debug session showing the address and port in the instance:

Using Microphone.WebAPI and Consul for Service Discovery

It will be interesting to see what will happen with Consul and systems like it if the Azure Service Fabric gains traction. Service Fabric offers a lot more, but I wonder if there is a use case for both, with Service Fabric managing lifecycles and Consul doing discovery.

This is all early days, but it's interesting. What do you think about these new discovery services for Web APIs?


Sponsor: Big thanks to Infragistics for sponsoring the feed this week. Quickly & effortlessly create advanced, stylish, & high performing UIs for ASP.NET MVC with Ignite UI. Leverage the full power of Infragistics’ JavaScript-based jQuery/HTML5 control suite today.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

It's happening - OpenSSH for Windows...from Microsoft

October 22, '15 Comments [25] Posted in Open Source
Sponsored By
OpenSSH for Windows

Back in June the folks over at the Microsoft PowerShell blog indicated they were going to support SSH in Windows soon. I read the post a few times and I must admit I read deeply between the lines and enjoyed the post very much. For example, this passage, with emphasis mine.

Finally, I'd like to share some background on today’s announcement, because this is the 3rd time the PowerShell team has attempted to support SSH.  The first attempts were during PowerShell V1 and V2 and were rejected.  Given our changes in leadership and culture, we decided to give it another try and this time, because we are able to show the clear and compelling customer value, the company is very supportive.  So I want to take a minute and thank all of you in the community who have been clearly and articulately making the case for why and how we should support SSH!

Fast forward a few months and they've just released a VERY early version. It's not quite useful enough for a daily driver but it's heartening that it's happening. Sure, it's late, and ya, it should have happened years ago, but it's happening and it'll be built in. SSH will be one less thing to worry about.

Note as they said:

With this initial milestone complete, we are now making the code publicly available and open for public contributions. Please note that this code is still very early and should be treated as a developer preview and is not supported for use in production.

The repository is over at https://github.com/PowerShell/Win32-OpenSSH and the first release is here https://github.com/PowerShell/Win32-OpenSSH/releases. I just unblocked the zip and unzipped it into my c:\utils folder so it was in my path.

I SSH'ed into an Ubuntu machine I have running in Azure like this:

>ssh scott@foofoo.cloudapp.net -p 12345

I did have an issue immediately with an error and some formatting, which I filed and also discussed here. I was able to mostly work around with it "export TERM=xterm" but I'm sure they'll fix it, as again, it's super early.

As an alternative SSH client, try the Bitvise SSH Client. It has a command line app called "stermc" that acts like SSH. I made an ssh.bat file that contains just "stermc %1" and this let's me shush around nicely.


Sponsor: Many thanks to Atalasoft for sponsoring the feed this week. If your project requires image viewing, format freedom, scanning, or other document-centric workflows, Atalasoft’s document imaging experts can help. Evaluate their developer tools for 30 days with remarkable human support.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Sponsored By
Hosting By
Dedicated Windows Server Hosting by SherWeb

Disclaimer: The opinions expressed herein are my own personal opinions and do not represent my employer's view in any way.
