ClickOnce and FireFox with a custom setup equals ClickThrice and be disappointed

November 12, 2005 Comment on this post [11] Posted in ASP.NET | Javascript | XML | Bugs
Sponsored By

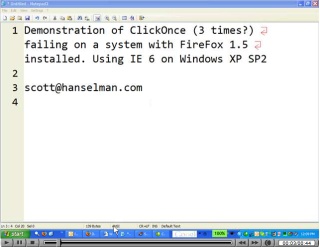

ClickoncescreencastthumbnailChris Sells via Michael Weinhardt ported Wahoo (a Tetris Clone) to ClickOnce/.NET2.0. I happily visited and attempted to download, expecting to click once. I run Firefox as my default browser and am currently running FireFox 1.5 RC2. However, Brian Noyes via Greg Robinson says

"ClickOnce does not have a dependency on browser flavour, so it should work with Firefox or IE (5.0.3 and up), provided the FX 2.0 is installed."

so I figured I'd be OK. But, just to be careful, I loaded up IE and ran it from there. Here's the result as a screencast.

There are two ways to launch this particular app. You can launch the setup.exe that confirms you have Windows Installer 3.1 (a requirement of MicrosoftUpdate.com) or you can launch it directly via the .application file. The application's manifest gets sent based on it's mime/type to the ClickOnce engine, dfsvc.exe. This application is responsible for reading the manifest and downloading the application into a per-user*per-application cache in C:\Documents and Settings\<you>\local settings\Apps\2.0. The application.manifest mime-type is application/x-ms-application and if you look in Windows (not Internet) Explorer's FileTypes dialog you see that it's open command is "rundll32.exe dfshim.dll,ShOpenVerbApplication %1" which tells rundll32.exe to call the ShOpenVerbApplication method on dfshim.dll also known as the Application Deployment Support Library. Since the setup.exe is calling ShellExecuteEx, it seems that Firefox as the default browser gets first dibs.

Note that the setup.exe isn't a requirement of ClickOnce, just a decision that MichaelW made to ensure a certain prereqs are available. (UPDATE: This has since been updated on the site but still doesn't work in FireFox) The ClickOnce deployment creates a .html file that does some interesting javascript in order to "do the right thing." The Javascript parses the UserAgent, looking for the presence of the CLR. This works on IE because IE's UserAgent string is modified when you install the .NET CLR and various other things. For example, my IE UserAgent is "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 1.1.4322; InfoPath.1; .NET CLR 2.0.50727; Avalon 6.0.5070; WinFX RunTime 3.0.50727)" while my FireFox one is "Mozilla/5.0 (Windows; U; Windows NT 5.1; en-US; rv:1.8) Gecko/20051107 Firefox/1.5".

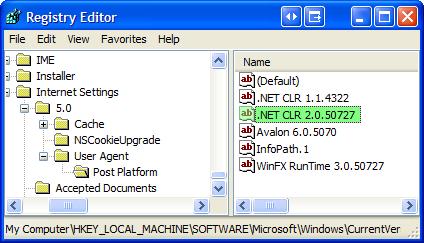

UseragentmodifiedNOTE: These User Agents are added in a list in the registry under HKEY_LOCAL_MACHINE\SOFTWARE\
Microsoft\Windows\CurrentVersion\Internet Settings\5.0\User Agent\Post Platform
. See screenshot at next.

THOUGHT: Seems to me that FireFox on Windows could save us a hassle if it would respect and use this list in its own User-Agent string.

function Initialize()
{
  if (HasRuntimeVersion(runtimeVersion))
  {
    InstallButton.href = directLink;
    BootstrapperSection.style.display = "none";
  }
}
Opening Wahoo.applicationfunction HasRuntimeVersion(v)
{
  var va = GetVersion(v);
  var i;
  var a = navigator.userAgent.match(/\.NET CLR [0-9.]+/g);
  if (a != null)
    for (i = 0; i < a.length; ++i)
      if (CompareVersions(va, GetVersion(a[i])) <= 0)
		return true;
  return false;
}

Nutshell is, one page is generated by the deployment wizard, but different browsers get different client-side-modified pages based on this (and other) Javascript.

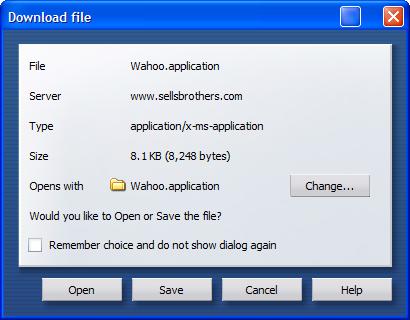

OperaClickOnceInterestingly the identical problem occurs when I use Opera 8.0. It downloads to a temp folder and runs, failing in the exact same way. Both Opera and Firefox download to the Local Settings\Temp, while IE downloads to the bowels of Temporary Internet Files\schmutz.

Hacking

I opened the XML-based .application file and noted this:

<dependentAssembly dependencyType="install" codebase="Wahoo_1_0_0_16\Wahoo.exe.manifest" size="10640">

which was mentioned in the error log file

 * Activation of C:\DOCUME~1\shanselm\LOCALS~1\Temp\wahoo-5.application resulted in exception. Following failure messages were detected:
  + Downloading
http://www.hanselman.com/blog/content/binary/Wahoo.exe.manifest did not succeed.
  + Could not find file 'C:\Documents and Settings\shanselm\Local Settings\Temp\Wahoo_1_0_0_16\Wahoo.exe.manifest'.

So, I downloaded http://www.sellsbrothers.com/wahoo2/Wahoo_1_0_0_16\Wahoo.exe.manifest and saved it to C:\Documents and Settings\shanselm\Local Settings\Temp\Wahoo_1_0_0_16 manually. Then I tried to run Wahoo.application again from FireFox and everything worked. Seems to me that could be a security hole. Dfsvc.exe shouldn't be thrilled to find a file it was responsible for downloading already present in the folder it was responsible for populating. I would have expected a failure to download, not success just because I did its work for it. However, what do I know about security? I tried to edit the .application file and of course was greeted with a tamper proof label, as expected:

System.Deployment.Application.InvalidDeploymentException (SignatureValidation) - Manifest XML signature is not valid.

That's comforting, though.

No conclusion here yet, folks. I was unable to get either the setup.exe version or the .application version to work any on of three machines, all running FireFox as the default browser. Of course, if I switch to IE as the default, everything works great.

Seems to me that I should be able to download and click on a .application file anywhere and have dfsvc.exe just handle it, copying things to wherever it needs to. It doesn't seem to expect to have .application downloaded to other locations.

Good news is, it's been reported as a bug and I expect we will here something soon. I'll post as soon as I get more info. Feel free to comment if I've gotten something wrong.

About Scott

Scott Hanselman is a former professor, former Chief Architect in finance, now speaker, consultant, father, diabetic, and Microsoft employee. He is a failed stand-up comic, a cornrower, and a book author.

facebook twitter subscribe
About   Newsletter
Hosting By
Hosted in an Azure App Service
November 12, 2005 8:46
Sorry the "off-topic" question:
What the software what you have used to create this screencast? The results are really very fine and seamless.

Congratulations
Fontenele

November 12, 2005 9:06
I saw a very similar problem with Beta 2, but could never figure out what was causing it. In Beta 2, instead of beginning the installer, nothing would happen at all. I hope this is fixed very, very, soon.
November 12, 2005 21:52
Fontenele - that's Camtasia.
November 14, 2005 7:33
Don't you consider the fact the IE bundles so much info into the user-agent to be a secuiry issue ?
November 14, 2005 9:16
Nice post Scott. Unfortunately at the time Greg asked me, I didn't have a Firefox machine available so (naively) believed what the ClickOnce Program Manager at Microsoft told me wrt Firefox. But besides documenting the problem, you give nice insight into what is going on under the covers here.
November 14, 2005 18:23
I looked at this a bit last week also. The core problem seems to be that Firefox *downloads* the .application file and then executes the associated application (a rundll32 call) on file it downloaded and put in a temp directory. This doesn't work because the application file has a relative path to the .manifest file.

IE, in contrast, it seems doesn't download the file. Instead, it executes the associated application and passes the *URL* of the .application file to the rundll32 command. Now, since the click once code knows the real location of the .application file (vs. a temp directory) the relative paths work.

I spent some time trying to figure out how to get firefox to not "download, then execute" the file, but was unsuccessful. Then I spent some time trying to get an .application file with a non-relative path and I never got that to work either.
November 14, 2005 18:28
Extra comment: I should say that I never confirmed for sure that IE didn't download the .application file. What I do know is that running the rundll32.exe dfshim.dll,ShOpenVerbApplication http://whatever/thing.applicaiton from the command prompt worked perfectly. That made me think that IE must be doing that.

However, another possibility is that IE is putting the location it downloaded the file from into the NTFS file stream (sort of the way it does with .exes that you download so that Windows knows later that you are running an EXE that was downloaded from the Internet). Perhaps the clickonce framework can read that stream to know where the file was downloaded from in order to resolve relative URLs?
November 16, 2005 1:27
You crazy kids and your alternative browsers!

I wouldn't hold my breath waiting for FireFox to
A) use the same user-agent string as IE
B) use the same app download execution strategy as IE
November 16, 2005 19:01
Is that an RTM compatible version of WinFX!?
December 09, 2005 1:52
You mentioned that this bug has been reported. Has the bug been reported to Mozilla or Microsoft? I have tried search Bugzilla at Mozilla, but I can't find anything refering to ClickOnce. https://bugzilla.mozilla.org/
March 02, 2006 15:00
Scott have written a blog [http://blogs.msdn.com/saurabh/archive/2006/03/02/541988.aspx] which provides soem more insight into the discussion you started above with your post ...
